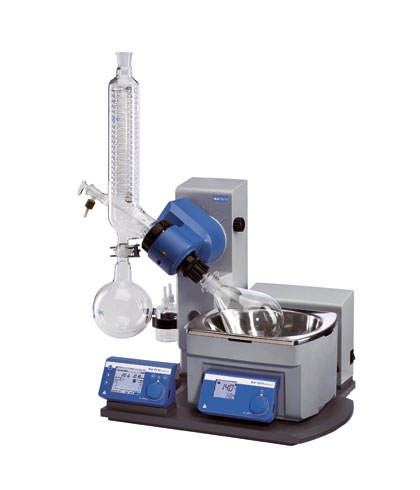

The newly developed product line from IKA® in ergonomic, compact design with innovative functions to improve operating results. Rotary evaporators with integrated heating bath HB 10 control (3 litre) incl. space saving vertical glassware (1 litre).

– Heating bath with adjustable safety circuit, “stand alone” operation possible, pivoting safety hood as accessory
– Safe and simple operation through ergonomically shaped operator unit in the front area
– Motorised lift (stroke 140 mm) with “safety stop” function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath.
– Adjustable end position recognition to protect the glass from breaking
– Speed range from 20 to 280 rpm
– Smooth start from 100 rpm
– Digital speed display
– Moves right and left in interval operation for the drying process
– Timer function for time lapse controls
– Water-oil heating bath with integrated carry handles with safe handling
– Heats up quickly because of optimised bath volumes
– Cooling surface 1,200 cm²
– Push-off mechanism to loosen tightly fitting pistons
– Digital water – oil heating bath with integrated carry handles
– Temperature control of the heating bath by a micro controller
– Digital temperature display
– Infrared interface for data transfer from the heating bath to the drive unit
– RS 232 interface for PC remote operation with labworldsoft
– Automatic operation with labworldsoft
– Integrated vacuum controller with central display for automatic distilling and ramp programming
– Integrated solvent library, extendible by the client
– Distillation specific parameters stored for standard distillation
– Automatic transfer of measurements and distillation type with one key press
– Volume controlled distillation processes programmable
– Colour graphic display for safe and comfortable device operation
– Display of distillation curves
– Multiple languages
– Automatic ventilation after the end of the test
– Cooling water switched off automatically after the end of the test
– Integrated cooling water monitoring
– Heating bath safety management: automatic heating bath monitoring with distillation stop in case of temperature errors
– Heating bath switched off automatically after the end of the test
– USB interface
– Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)

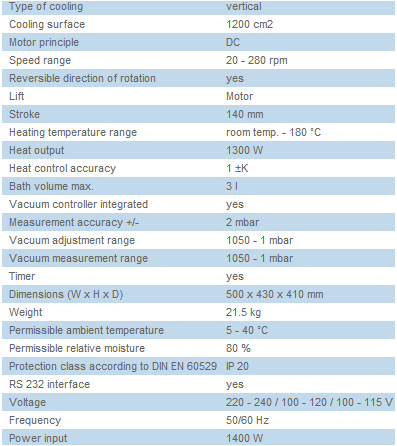

TECHNICAL DATA
